LDAP access configuration

Overview

You can configure LDAP access to your Altcraft MP account and Administrative panel. This allows your employees to use company's directory service like Active Directory to log into the platform with a predefined set of access groups and roles.

LDAP can be used for both Administrative panel and for account User interface.

A DistinguishedName for a group of users includes nested groups of directory service hierarchy.

LDAP access to Administrative panel

LDAP access to platform Administrative panel is configured in MarketingPlatform/config/main.json configuration file:

"LDAP": {
  "LDAP_ONLY": false,
  "PRIMARY_HOST": "ldap.primary.example.com",
  "PRIMARY_PORT": 389,
  "SECONDARY_HOST": "ldap.secondary.example.com",
  "SECONDARY_PORT": 389,
  "BINDLOGIN": "cn=admin,dc=example,dc=com",
  "BINDPASS": "your_password",
  "BASE_DN": "dc=example,dc=com",
  "AUTH_GROUP": "CN=AdminGroup,CN=Users,DC=example,DC=com",
  "IS_SSL": false,
  "START_TLS": false,
  "CRT_PATH": "/etc/ssl/certs/ldap_client.crt",
  "CA_CRT_PATH": "/etc/ssl/certs/ca.crt",
  "KEY_PATH": "/etc/ssl/private/ldap_client.key"
},
"LDAP_CHECK_USER_TIME_PERIOD_SEC": 300

Parameter	Type	Description
Main parameters
LDAP_ONLY	bool	Prohibits access to the admin panel using login/password created within the platform. All authentication requests are directed to the LDAP server.
PRIMARY_HOST	string	Network address of the primary LDAP server.
PRIMARY_PORT	int	Port of the primary LDAP server (usually 389 for LDAP, 636 for LDAPS).
SECONDARY_HOST	string	Network address of the backup LDAP server for fault tolerance.
SECONDARY_PORT	int	Port of the backup LDAP server.
BINDLOGIN	string	Login of the account for connecting to the LDAP server (e.g., cn=admin,dc=example,dc=com).
BINDPASS	string	Password of the account for connecting to the LDAP server.
BASE_DN	string	The base DN (Distinguished Name) from which the directory search begins.
AUTH_GROUP	string	The distinguished name of the LDAP access group that determines employee access to the admin panel.
Secure connection parameters
IS_SSL	bool	Enables LDAPS mode (LDAP over SSL). The connection is encrypted from the start on a separate port (usually 636).
START_TLS	bool	Enables the STARTTLS extension. Encryption is established on top of the regular connection on the standard LDAP port (389) after executing a special command.
CRT_PATH	string	Path to the client certificate file (if mutual authentication is required).
CA_CRT_PATH	string	Path to the Certificate Authority (CA) certificate file.
KEY_PATH	string	Path to the client's private key file.
Additional parameters
LDAP_CHECK_USER_TIME_PERIOD_SEC	int	Time interval (in seconds) for checking the compliance of user rights with the granted access. Set outside the LDAP object. Default: 300.

info

• The account for connecting to the server (BINDLOGIN/BINDPASS) must have sufficient rights to read the attributes of the group specified in AUTH_GROUP.
• The IS_SSL and START_TLS parameters are mutually exclusive — only one encryption mode can be enabled at a time. More information about the STARTTLS mechanism can be found in this article.

After making changes to the main.json configuration file, restart Altcraft MP (./akd restart).

LDAP User interface access

LDAP access to account User interface is set up for every account separately in Altcraft Administrative panel.

LDAP binding creation

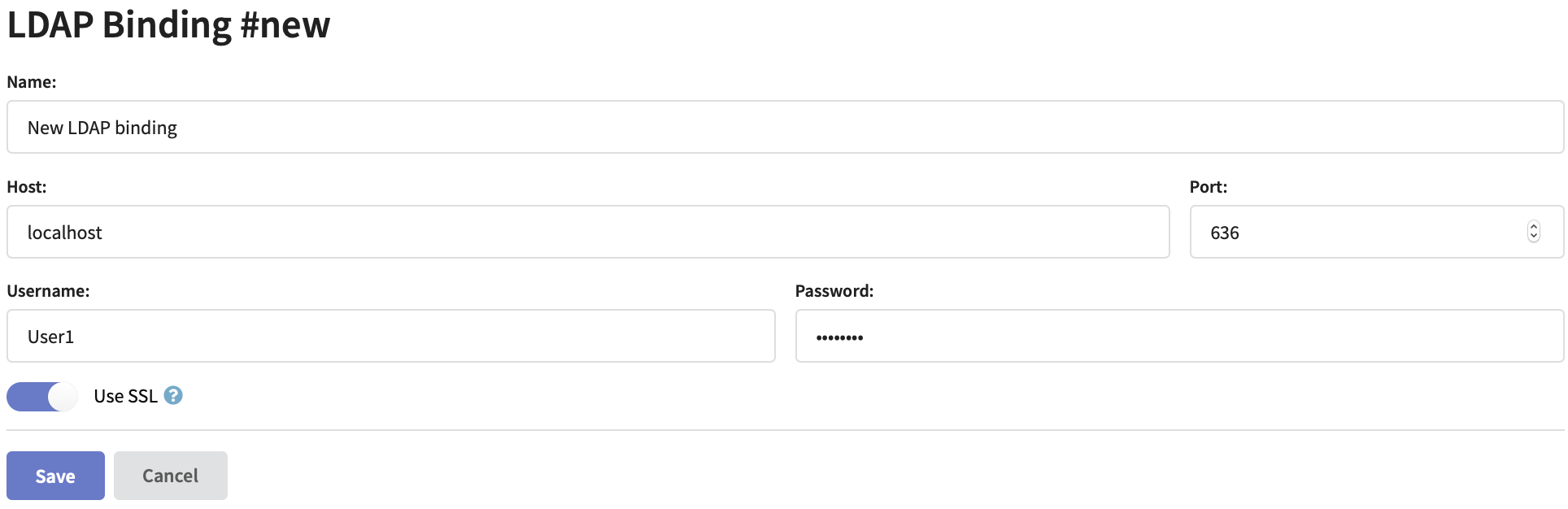

Enter Altcraft MP Administrative panel and open Create —> LDAP binding or Setup —> LDAP binding and press Create.

Specify LDAP connector name, directory server network address and port. Enter Username and Password for directory server database access. If you are planning to use a secure connection activate Use SSL option and set up directory service SSL certificates.

caution

Directory service connection account must have sufficient access rights to the groups that will be used for platform authorisation.

Setting up account LDAP access

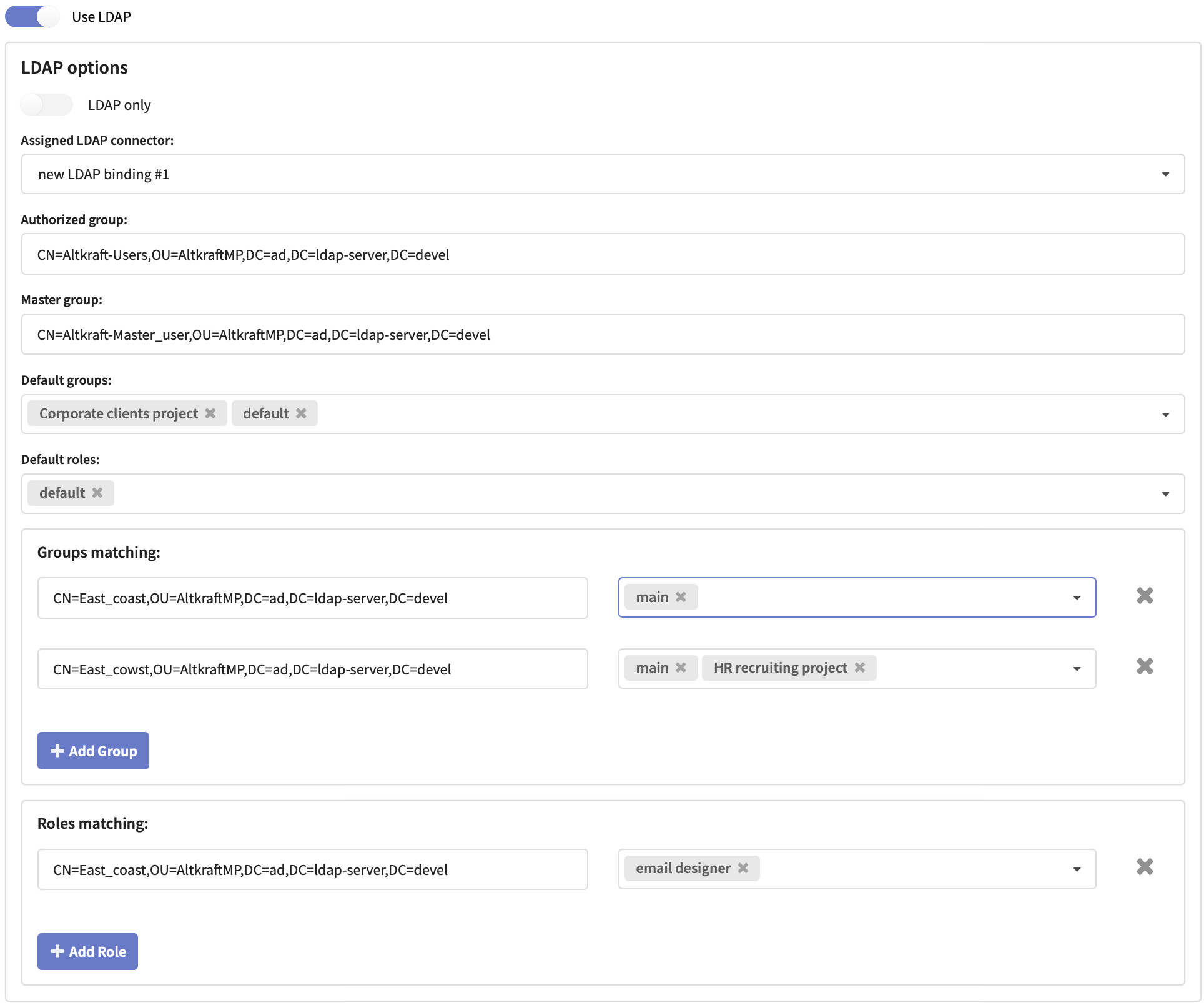

Open an existing account settings or create a new account. Activate Use LDAP option to get access to the settings:

note

LDAP only option restricts Altcraft login and password authorisations. All requests will be processed via LDAP to directory service.

Time interval between checking user DistinguishedName and access rights matching is configured in main.json configuration file in LDAP_CHECK_USER_TIME_PERIOD_SEC property with an integer value. By default — 300 seconds.

In a dropdown select an Assigned LDAP connector: LDAP binding, you are going to use for this account access.

Basic access settings

For configuring basic account access you will need directory service DistinguishedNames for the following groups:

• Auth Group — allows platform access with a default set of user groups and roles.
• Master Group — allows master access to account settings, main group containing all account objects and to objects outside groups.

Both LDAP groups are required for a user to have master access.

Specify these groups DistinguishedNames in the corresponding fields. As DN examples the following are used: CN — common name, OU — organisation unit and DC — domain component.

Select or create Default Groupsand Default Roles to be accessible by default for all users with Authorized group DistinguishedName.

note

WARNING! Users with no assigned groups or roles cannot log into account.

In case a user role allows to interact with a certain group make sure the corresponding group is assigned to the user as well. Otherwise no access to the group will be permitted.

Access differentiation

You can create directory service DistinguishedNames matching custom Altcraft MP groups and roles.

Enter the DistinguishedNames into these fields:

• Groups matching — to set access groups matching.
• Roles matching — to set access roles matching.

Authorizing with LDAP

To enter Administrative panel use LDAP username and password.

To enter account interface use LDAP username with account alias: ldapuser@domain.com@account1, and LDAP password.

If LDAP only option is disabled, both Altcraft MP and LDAP login credentials can be used.
